rerun::archetypes::BarChart Struct Reference

Archetype: A bar chart. More...

#include <rerun/archetypes/bar_chart.hpp>

Public Member Functions
	BarChart (rerun::datatypes::TensorBuffer buffer)
	BarChart (Collection< uint8_t > u8)
	Construct a BarChart from a Collection<uint8_t>.
	BarChart (Collection< uint16_t > u16)
	Construct a BarChart from a Collection<uint16_t>.
	BarChart (Collection< uint32_t > u32)
	Construct a BarChart from a Collection<uint32_t>.
	BarChart (Collection< uint64_t > u64)
	Construct a BarChart from a Collection<uint64_t>.
	BarChart (Collection< int8_t > i8)
	Construct a BarChart from a Collection<int8_t>.
	BarChart (Collection< int16_t > i16)
	Construct a BarChart from a Collection<int16_t>.
	BarChart (Collection< int32_t > i32)
	Construct a BarChart from a Collection<int32_t>.
	BarChart (Collection< int64_t > i64)
	Construct a BarChart from a Collection<int64_t>.
	BarChart (Collection< rerun::half > f16)
	Construct aBarChartfrom aCollection<half>`.
	BarChart (Collection< float > f32)
	Construct a BarChart from a Collection<float>.
	BarChart (Collection< double > f64)
	Construct a BarChart from a Collection<double>.
	BarChart (BarChart &&other)=default
	BarChart (const BarChart &other)=default
BarChart &	operator= (const BarChart &other)=default
BarChart &	operator= (BarChart &&other)=default
	BarChart (rerun::components::TensorData _values)
BarChart	with_values (const rerun::components::TensorData &_values) &&
	The values. Should always be a 1-dimensional tensor (i.e. a vector).
BarChart	with_many_values (const Collection< rerun::components::TensorData > &_values) &&
	This method makes it possible to pack multiple values in a single component batch.
BarChart	with_color (const rerun::components::Color &_color) &&
	The color of the bar chart.
BarChart	with_many_color (const Collection< rerun::components::Color > &_color) &&
	This method makes it possible to pack multiple color in a single component batch.
BarChart	with_abscissa (const rerun::components::TensorData &_abscissa) &&
	The abscissa corresponding to each value. Should be a 1-dimensional tensor (i.e. a vector) in same length as values.
BarChart	with_many_abscissa (const Collection< rerun::components::TensorData > &_abscissa) &&
	This method makes it possible to pack multiple abscissa in a single component batch.
Collection< ComponentColumn >	columns (const Collection< uint32_t > &lengths_)
	Partitions the component data into multiple sub-batches.
Collection< ComponentColumn >	columns ()
	Partitions the component data into unit-length sub-batches.

Static Public Member Functions
static BarChart	u8 (Collection< uint8_t > u8)
	Construct a BarChart from a Collection<uint8_t>.
static BarChart	u16 (Collection< uint16_t > u16)
	Construct a BarChart from a Collection<uint16_t>.
static BarChart	u32 (Collection< uint32_t > u32)
	Construct a BarChart from a Collection<uint32_t>.
static BarChart	u64 (Collection< uint64_t > u64)
	Construct a BarChart from a Collection<uint64_t>.
static BarChart	i8 (Collection< int8_t > i8)
	Construct a BarChart from a Collection<int8_t>.
static BarChart	i16 (Collection< int16_t > i16)
	Construct a BarChart from a Collection<int16_t>.
static BarChart	i32 (Collection< int32_t > i32)
	Construct a BarChart from a Collection<int32_t>.
static BarChart	i64 (Collection< int64_t > i64)
	Construct a BarChart from a Collection<int64_t>.
static BarChart	f16 (Collection< rerun::half > f16)
	Construct a BarChart from a Collection<half>.
static BarChart	f32 (Collection< float > f32)
	Construct a BarChart from a Collection<float>.
static BarChart	f64 (Collection< double > f64)
	Construct a BarChart from a Collection<double>.
static BarChart	update_fields ()
	Update only some specific fields of a BarChart.
static BarChart	clear_fields ()
	Clear all the fields of a BarChart.

Public Attributes
std::optional< ComponentBatch >	values
	The values. Should always be a 1-dimensional tensor (i.e. a vector).
std::optional< ComponentBatch >	color
	The color of the bar chart.
std::optional< ComponentBatch >	abscissa
	The abscissa corresponding to each value. Should be a 1-dimensional tensor (i.e. a vector) in same length as values.

Static Public Attributes
static constexpr const char	ArchetypeName [] = "rerun.archetypes.BarChart"
	The name of the archetype as used in ComponentDescriptors.
static constexpr auto	Descriptor_values
	ComponentDescriptor for the values field.
static constexpr auto	Descriptor_color
	ComponentDescriptor for the color field.
static constexpr auto	Descriptor_abscissa
	ComponentDescriptor for the abscissa field.

Detailed Description

Archetype: A bar chart.

The bar heights will be the provided values, and the x coordinates of the bars will be the provided abscissa or default to the index of the provided values.

Example

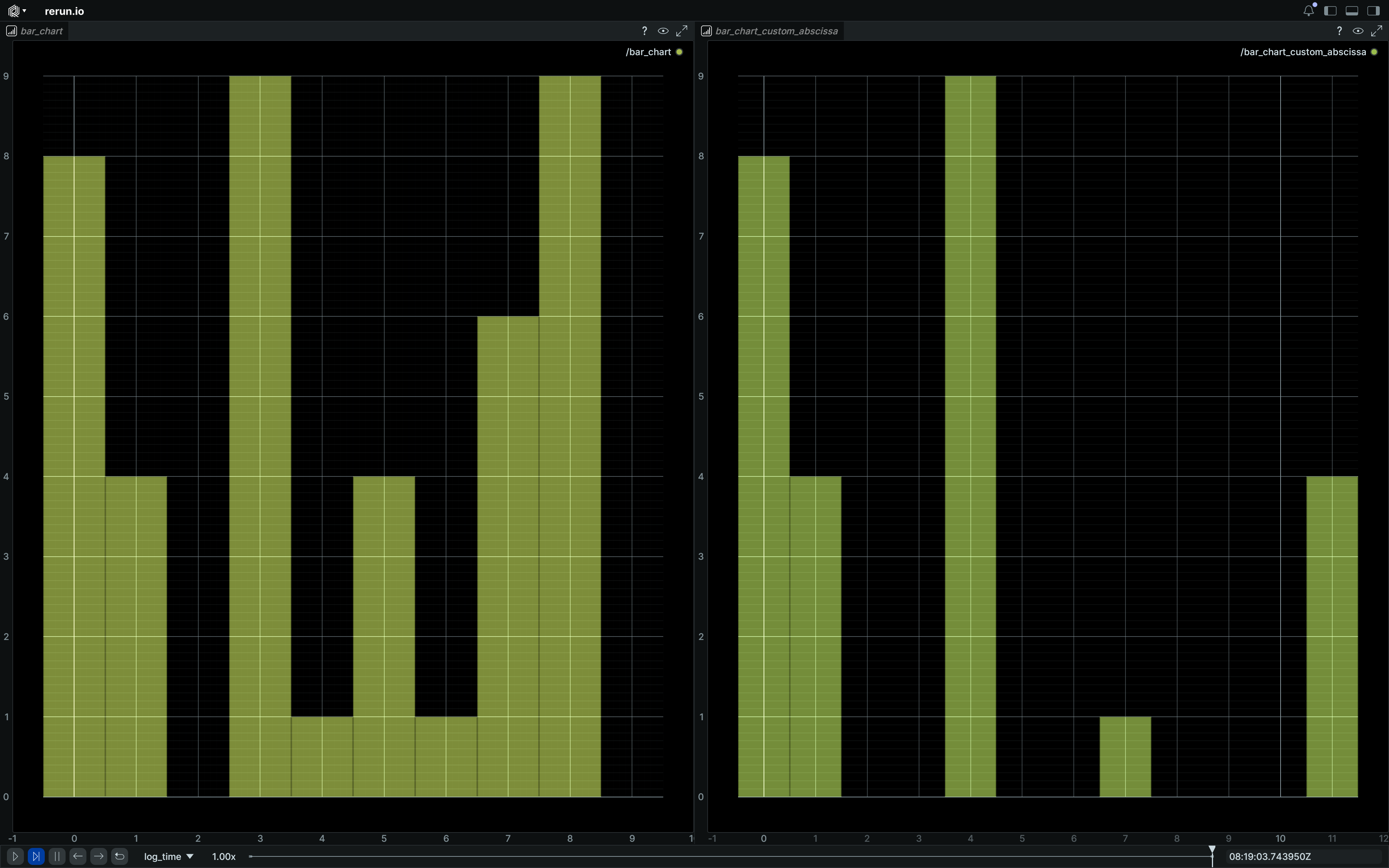

Simple bar chart

#include <rerun.hpp>
#include <vector>

int main() {
    const auto rec = rerun::RecordingStream("rerun_example_bar_chart");
    rec.spawn().exit_on_failure();

    rec.log("bar_chart", rerun::BarChart::i64({8, 4, 0, 9, 1, 4, 1, 6, 9, 0}));

    auto abscissa = std::vector<int64_t>{0, 1, 3, 4, 7, 11};
    auto abscissa_data = rerun::TensorData(rerun::Collection{abscissa.size()}, abscissa);
    rec.log(
        "bar_chart_custom_abscissa",
        rerun::BarChart::i64({8, 4, 0, 9, 1, 4}).with_abscissa(abscissa_data)
    );
}

Member Function Documentation

with_many_values()

BarChart rerun::archetypes::BarChart::with_many_values ( const Collection< rerun::components::TensorData > &  _values ) &&

inline

This method makes it possible to pack multiple values in a single component batch.

This only makes sense when used in conjunction with columns. with_values should be used when logging a single row's worth of data.

with_many_color()

BarChart rerun::archetypes::BarChart::with_many_color ( const Collection< rerun::components::Color > &  _color ) &&

inline

This method makes it possible to pack multiple color in a single component batch.

This only makes sense when used in conjunction with columns. with_color should be used when logging a single row's worth of data.

with_many_abscissa()

BarChart rerun::archetypes::BarChart::with_many_abscissa ( const Collection< rerun::components::TensorData > &  _abscissa ) &&

inline

This method makes it possible to pack multiple abscissa in a single component batch.

This only makes sense when used in conjunction with columns. with_abscissa should be used when logging a single row's worth of data.

columns() [1/2]

Collection< ComponentColumn > rerun::archetypes::BarChart::columns

(

const Collection< uint32_t > &

lengths_

)

Partitions the component data into multiple sub-batches.

Specifically, this transforms the existing ComponentBatch data into ComponentColumns instead, via ComponentBatch::partitioned.

This makes it possible to use RecordingStream::send_columns to send columnar data directly into Rerun.

The specified lengths must sum to the total length of the component batch.

columns() [2/2]

Collection< ComponentColumn > rerun::archetypes::BarChart::columns

(

)

Partitions the component data into unit-length sub-batches.

This is semantically similar to calling columns with std::vector<uint32_t>(n, 1), where n is automatically guessed.

Member Data Documentation

Descriptor_values

constexpr auto rerun::archetypes::BarChart::Descriptor_values

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "BarChart:values", Loggable<rerun::components::TensorData>::ComponentType
        )

ComponentDescriptor for the values field.

Descriptor_color

constexpr auto rerun::archetypes::BarChart::Descriptor_color

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "BarChart:color", Loggable<rerun::components::Color>::ComponentType
        )

ComponentDescriptor for the color field.

Descriptor_abscissa

constexpr auto rerun::archetypes::BarChart::Descriptor_abscissa

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "BarChart:abscissa",
            Loggable<rerun::components::TensorData>::ComponentType
        )

ComponentDescriptor for the abscissa field.

---

The documentation for this struct was generated from the following file:

• rerun/archetypes/bar_chart.hpp
