Archetype: One or more scalar measurements, each with a variance and a unit. More...

#include <rerun/archetypes/measurements.hpp>

Public Member Functions
	Measurements (Measurements &&other)=default

	Measurements (const Measurements &other)=default

Measurements &	operator= (const Measurements &other)=default

Measurements &	operator= (Measurements &&other)=default

	Measurements (Collection< rerun::components::Scalar > _values)

Measurements	with_values (const Collection< rerun::components::Scalar > &_values) &&
	The measured scalar values.

Measurements	with_variances (const Collection< rerun::components::Variance > &_variances) &&
	Variances of the measurements (σ², in the units of `values` squared).

Measurements	with_units (const Collection< rerun::components::Unit > &_units) &&
	Units of the measurements, shown in the legend and in tooltips.

Measurements	with_colors (const Collection< rerun::components::Color > &_colors) &&
	Color for the corresponding series.

Measurements	with_widths (const Collection< rerun::components::StrokeWidth > &_widths) &&
	Stroke width for the corresponding series.

Measurements	with_names (const Collection< rerun::components::Name > &_names) &&
	Display name of the series.

Measurements	with_visible_series (const Collection< rerun::components::Visible > &_visible_series) &&
	Which series are visible.

Measurements	with_aggregation_policy (const rerun::components::AggregationPolicy &_aggregation_policy) &&
	Configures the zoom-dependent scalar aggregation.

Measurements	with_many_aggregation_policy (const Collection< rerun::components::AggregationPolicy > &_aggregation_policy) &&
	This method makes it possible to pack multiple `aggregation_policy` in a single component batch.

Measurements	with_interpolation_mode (const rerun::components::InterpolationMode &_interpolation_mode) &&
	Specifies how values between data points are interpolated.

Measurements	with_many_interpolation_mode (const Collection< rerun::components::InterpolationMode > &_interpolation_mode) &&
	This method makes it possible to pack multiple `interpolation_mode` in a single component batch.

Collection< ComponentColumn >	columns (const Collection< uint32_t > &lengths_)
	Partitions the component data into multiple sub-batches.

Collection< ComponentColumn >	columns ()
	Partitions the component data into unit-length sub-batches.

Static Public Member Functions
static Measurements	update_fields ()
	Update only some specific fields of a `Measurements`.

static Measurements	clear_fields ()
	Clear all the fields of a `Measurements`.

Public Attributes
std::optional< ComponentBatch >	values
	The measured scalar values.

std::optional< ComponentBatch >	variances
	Variances of the measurements (σ², in the units of `values` squared).

std::optional< ComponentBatch >	units
	Units of the measurements, shown in the legend and in tooltips.

std::optional< ComponentBatch >	colors
	Color for the corresponding series.

std::optional< ComponentBatch >	widths
	Stroke width for the corresponding series.

std::optional< ComponentBatch >	names
	Display name of the series.

std::optional< ComponentBatch >	visible_series
	Which series are visible.

std::optional< ComponentBatch >	aggregation_policy
	Configures the zoom-dependent scalar aggregation.

std::optional< ComponentBatch >	interpolation_mode
	Specifies how values between data points are interpolated.

Static Public Attributes
static constexpr const char	ArchetypeName [] = "rerun.archetypes.Measurements"
	The name of the archetype as used in `ComponentDescriptor`s.

static constexpr auto	Descriptor_values
	`ComponentDescriptor` for the `values` field.

static constexpr auto	Descriptor_variances
	`ComponentDescriptor` for the `variances` field.

static constexpr auto	Descriptor_units
	`ComponentDescriptor` for the `units` field.

static constexpr auto	Descriptor_colors
	`ComponentDescriptor` for the `colors` field.

static constexpr auto	Descriptor_widths
	`ComponentDescriptor` for the `widths` field.

static constexpr auto	Descriptor_names
	`ComponentDescriptor` for the `names` field.

static constexpr auto	Descriptor_visible_series
	`ComponentDescriptor` for the `visible_series` field.

static constexpr auto	Descriptor_aggregation_policy
	`ComponentDescriptor` for the `aggregation_policy` field.

static constexpr auto	Descriptor_interpolation_mode
	`ComponentDescriptor` for the `interpolation_mode` field.

Detailed Description

Archetype: One or more scalar measurements, each with a variance and a unit.

Use this for sensors that report a value together with its uncertainty: pressure, temperature, illuminance, relative humidity, range, and so on.

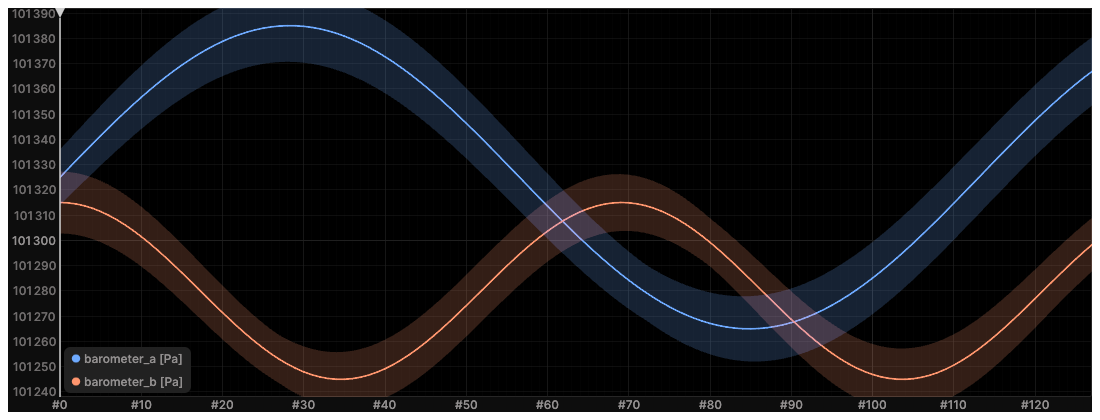

In a views::TimeSeriesView each series is drawn as a line with a translucent band around it, one standard deviation (the square root of the variance) wide in each direction. Leave variances unset if the uncertainty is unknown.

The current timeline value is used for the time/X-axis, so measurements should not be static. Number of values per timestamp is expected to be the same over time.

Unlike archetypes::Scalars, this archetype carries its own styling, so values and style are logged together. Changes over time are supported for most but not all styling fields (see respective fields for details).

Example

Pressure with variance

#include <rerun.hpp>

#include <cmath>

int main(int argc, char* argv[]) {
    const auto rec =
        rerun::RecordingStream("rerun_example_measurements_simple");
    rec.spawn().exit_on_failure();

    // Two parallel pressure sensors (in Pa), each with slowly drifting variance.
    for (int step = 0; step <64; ++step) {
        rec.set_time_sequence("step", step);
        const auto s = static_cast<double>(step);
        const std::array<double, 2> pressures = {
            101325.0 + 50.0 * std::sin(s / 10.0),
            101300.0 + 30.0 * std::cos(s / 8.0),
        };
        const std::array<double, 2> variances = {
            100.0 + 25.0 * std::sin(s / 7.0),
            80.0 + 15.0 * std::cos(s / 11.0),
        };
        rec.log(
            "pressure",
            rerun::Measurements(pressures).with_variances(variances).with_units(
                {"Pa"}
            )
        );
    }
}

⚠ This type is unstable and may change significantly in a way that the data won't be backwards compatible.

Member Function Documentation

◆ with_variances()

Measurements rerun::archetypes::Measurements::with_variances ( const Collection< rerun::components::Variance > & _variances ) &&

inline

Variances of the measurements (σ², in the units of values squared).

When set, length is expected to match values.

◆ with_units()

Measurements rerun::archetypes::Measurements::with_units ( const Collection< rerun::components::Unit > & _units ) &&

inline

Units of the measurements, shown in the legend and in tooltips.

When set, length is expected to match values. Expected to be unchanging over time.

◆ with_colors()

Measurements rerun::archetypes::Measurements::with_colors ( const Collection< rerun::components::Color > & _colors ) &&

inline

Color for the corresponding series.

May change over time, but can cause discontinuities in the line.

◆ with_widths()

Measurements rerun::archetypes::Measurements::with_widths ( const Collection< rerun::components::StrokeWidth > & _widths ) &&

inline

Stroke width for the corresponding series.

May change over time, but can cause discontinuities in the line.

◆ with_names()

Measurements rerun::archetypes::Measurements::with_names ( const Collection< rerun::components::Name > & _names ) &&

inline

Display name of the series.

Used in the legend. Expected to be unchanging over time.

◆ with_visible_series()

Measurements rerun::archetypes::Measurements::with_visible_series ( const Collection< rerun::components::Visible > & _visible_series ) &&

inline

Which series are visible.

If not set, all series on this entity are visible. Unlike with the regular visibility property of the entire entity, any series that is hidden via this property will still be visible in the legend.

May change over time, but can cause discontinuities in the line.

◆ with_aggregation_policy()

Measurements rerun::archetypes::Measurements::with_aggregation_policy ( const rerun::components::AggregationPolicy & _aggregation_policy ) &&

inline

Configures the zoom-dependent scalar aggregation.

This is done only if steps on the X axis go below a single pixel, i.e. a single pixel covers more than one tick worth of data. It can greatly improve performance (and readability) in such situations as it prevents overdraw.

Expected to be unchanging over time.

◆ with_many_aggregation_policy()

Measurements rerun::archetypes::Measurements::with_many_aggregation_policy ( const Collection< rerun::components::AggregationPolicy > & _aggregation_policy ) &&

inline

This method makes it possible to pack multiple aggregation_policy in a single component batch.

This only makes sense when used in conjunction with columns. with_aggregation_policy should be used when logging a single row's worth of data.

◆ with_interpolation_mode()

Measurements rerun::archetypes::Measurements::with_interpolation_mode ( const rerun::components::InterpolationMode & _interpolation_mode ) &&

inline

Specifies how values between data points are interpolated.

Defaults to linear interpolation. Use one of the Step* variants for a stepped (staircase) line.

Expected to be unchanging over time.

◆ with_many_interpolation_mode()

Measurements rerun::archetypes::Measurements::with_many_interpolation_mode ( const Collection< rerun::components::InterpolationMode > & _interpolation_mode ) &&

inline

This method makes it possible to pack multiple interpolation_mode in a single component batch.

This only makes sense when used in conjunction with columns. with_interpolation_mode should be used when logging a single row's worth of data.

◆ columns() [1/2]

Collection< ComponentColumn > rerun::archetypes::Measurements::columns ( const Collection< uint32_t > & lengths_ )

Partitions the component data into multiple sub-batches.

Specifically, this transforms the existing ComponentBatch data into ComponentColumns instead, via ComponentBatch::partitioned.

This makes it possible to use RecordingStream::send_columns to send columnar data directly into Rerun.

The specified lengths must sum to the total length of the component batch.

◆ columns() [2/2]

Collection< ComponentColumn > rerun::archetypes::Measurements::columns ( )

Partitions the component data into unit-length sub-batches.

This is semantically similar to calling columns with std::vector<uint32_t>(n, 1), where n is automatically guessed.

Member Data Documentation

◆ variances

std::optional<ComponentBatch> rerun::archetypes::Measurements::variances

Variances of the measurements (σ², in the units of values squared).

When set, length is expected to match values.

◆ units

std::optional<ComponentBatch> rerun::archetypes::Measurements::units

Units of the measurements, shown in the legend and in tooltips.

When set, length is expected to match values. Expected to be unchanging over time.

◆ colors

std::optional<ComponentBatch> rerun::archetypes::Measurements::colors

Color for the corresponding series.

May change over time, but can cause discontinuities in the line.

◆ widths

std::optional<ComponentBatch> rerun::archetypes::Measurements::widths

Stroke width for the corresponding series.

May change over time, but can cause discontinuities in the line.

◆ names

std::optional<ComponentBatch> rerun::archetypes::Measurements::names

Display name of the series.

Used in the legend. Expected to be unchanging over time.

◆ visible_series

std::optional<ComponentBatch> rerun::archetypes::Measurements::visible_series

Which series are visible.

If not set, all series on this entity are visible. Unlike with the regular visibility property of the entire entity, any series that is hidden via this property will still be visible in the legend.

May change over time, but can cause discontinuities in the line.

◆ aggregation_policy

std::optional<ComponentBatch> rerun::archetypes::Measurements::aggregation_policy

Configures the zoom-dependent scalar aggregation.

This is done only if steps on the X axis go below a single pixel, i.e. a single pixel covers more than one tick worth of data. It can greatly improve performance (and readability) in such situations as it prevents overdraw.

Expected to be unchanging over time.

◆ interpolation_mode

std::optional<ComponentBatch> rerun::archetypes::Measurements::interpolation_mode

Specifies how values between data points are interpolated.

Defaults to linear interpolation. Use one of the Step* variants for a stepped (staircase) line.

Expected to be unchanging over time.

◆ Descriptor_values

constexpr auto rerun::archetypes::Measurements::Descriptor_values

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:values", Loggable<rerun::components::Scalar>::ComponentType
        )

ComponentDescriptor for the values field.

◆ Descriptor_variances

constexpr auto rerun::archetypes::Measurements::Descriptor_variances

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:variances",
            Loggable<rerun::components::Variance>::ComponentType
        )

ComponentDescriptor for the variances field.

◆ Descriptor_units

constexpr auto rerun::archetypes::Measurements::Descriptor_units

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:units", Loggable<rerun::components::Unit>::ComponentType
        )

ComponentDescriptor for the units field.

◆ Descriptor_colors

constexpr auto rerun::archetypes::Measurements::Descriptor_colors

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:colors", Loggable<rerun::components::Color>::ComponentType
        )

ComponentDescriptor for the colors field.

◆ Descriptor_widths

constexpr auto rerun::archetypes::Measurements::Descriptor_widths

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:widths",
            Loggable<rerun::components::StrokeWidth>::ComponentType
        )

ComponentDescriptor for the widths field.

◆ Descriptor_names

constexpr auto rerun::archetypes::Measurements::Descriptor_names

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:names", Loggable<rerun::components::Name>::ComponentType
        )

ComponentDescriptor for the names field.

◆ Descriptor_visible_series

constexpr auto rerun::archetypes::Measurements::Descriptor_visible_series

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:visible_series",
            Loggable<rerun::components::Visible>::ComponentType
        )

ComponentDescriptor for the visible_series field.

◆ Descriptor_aggregation_policy

constexpr auto rerun::archetypes::Measurements::Descriptor_aggregation_policy

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:aggregation_policy",
            Loggable<rerun::components::AggregationPolicy>::ComponentType
        )

ComponentDescriptor for the aggregation_policy field.

◆ Descriptor_interpolation_mode

constexpr auto rerun::archetypes::Measurements::Descriptor_interpolation_mode

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Measurements:interpolation_mode",
            Loggable<rerun::components::InterpolationMode>::ComponentType
        )

ComponentDescriptor for the interpolation_mode field.

The documentation for this struct was generated from the following file:

rerun/archetypes/measurements.hpp

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

Example

Pressure with variance

Member Function Documentation

◆ with_variances()

◆ with_units()

◆ with_colors()

◆ with_widths()

◆ with_names()

◆ with_visible_series()

◆ with_aggregation_policy()

◆ with_many_aggregation_policy()

◆ with_interpolation_mode()

◆ with_many_interpolation_mode()

◆ columns() [1/2]

◆ columns() [2/2]

Member Data Documentation

◆ variances

◆ units

◆ colors

◆ widths

◆ names

◆ visible_series

◆ aggregation_policy

◆ interpolation_mode

◆ Descriptor_values

◆ Descriptor_variances

◆ Descriptor_units

◆ Descriptor_colors

◆ Descriptor_widths

◆ Descriptor_names

◆ Descriptor_visible_series

◆ Descriptor_aggregation_policy

◆ Descriptor_interpolation_mode
