rerun::archetypes::Status Struct Reference

Archetype: A status update, representing a change in the status of an entity. More...

#include <rerun/archetypes/status.hpp>

Public Member Functions
	Status (Status &&other)=default
	Status (const Status &other)=default
Status &	operator= (const Status &other)=default
Status &	operator= (Status &&other)=default
Status	with_status (const rerun::components::Text &_status) &&
	The new status value. A null status is ignored, it can be used to partially update a multi-instance status array.
Status	with_many_status (const Collection< rerun::components::Text > &_status) &&
	This method makes it possible to pack multiple status in a single component batch.
Collection< ComponentColumn >	columns (const Collection< uint32_t > &lengths_)
	Partitions the component data into multiple sub-batches.
Collection< ComponentColumn >	columns ()
	Partitions the component data into unit-length sub-batches.

Static Public Member Functions
static Status	update_fields ()
	Update only some specific fields of a Status.
static Status	clear_fields ()
	Clear all the fields of a Status.

Public Attributes
std::optional< ComponentBatch >	status
	The new status value. A null status is ignored, it can be used to partially update a multi-instance status array.

Static Public Attributes
static constexpr const char	ArchetypeName [] = "rerun.archetypes.Status"
	The name of the archetype as used in ComponentDescriptors.
static constexpr auto	Descriptor_status
	ComponentDescriptor for the status field.

Detailed Description

Archetype: A status update, representing a change in the status of an entity.

Useful for representing discrete state machines, mode transitions, or status changes over time. Each logged archetypes::Status marks a new status at the given time. A null status is ignored by the Status view.

The Status view displays these as horizontal colored lanes over time.

Example

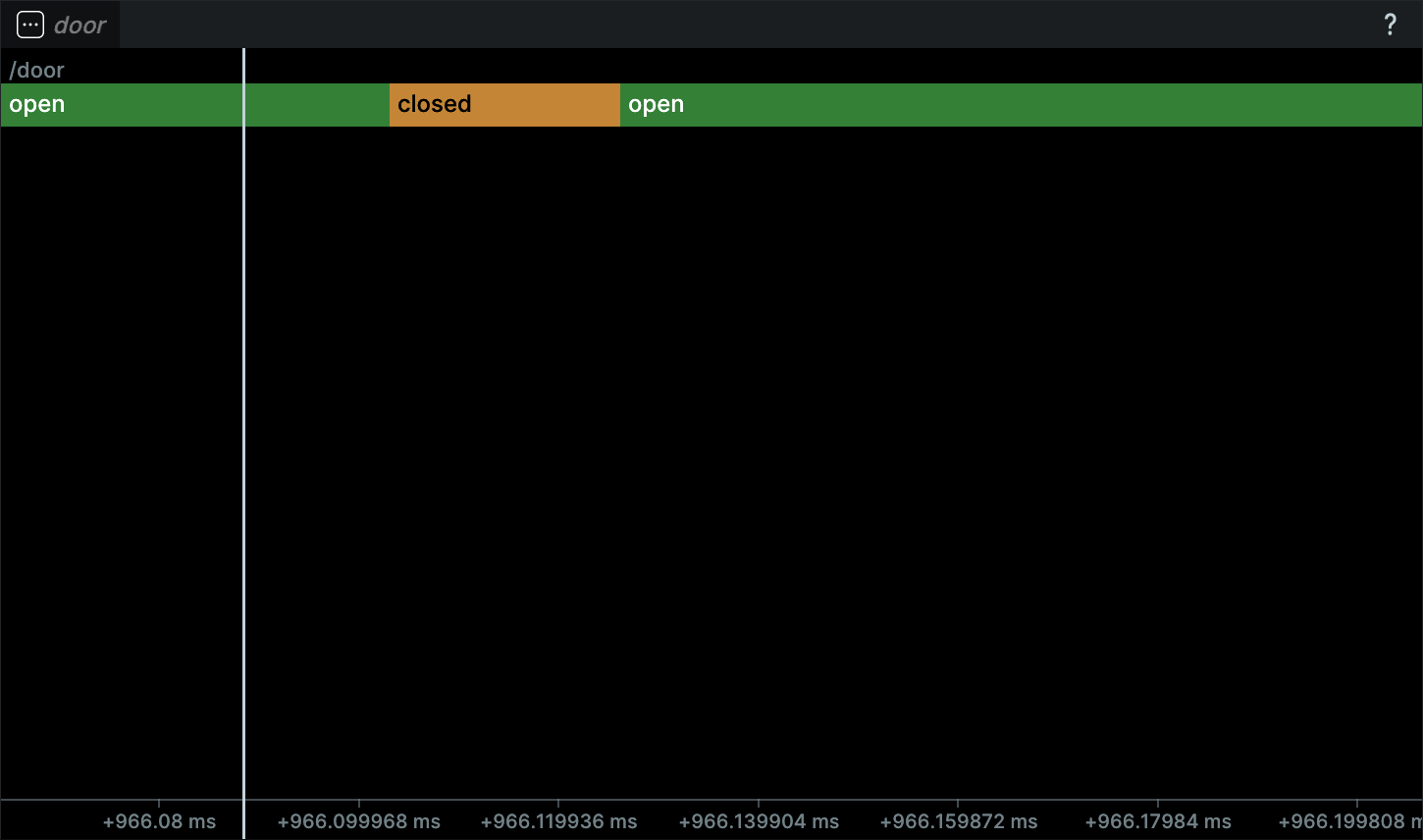

Status changes over time

#include <rerun.hpp>

int main(int argc, char* argv[]) {
    const auto rec = rerun::RecordingStream("rerun_example_status");
    rec.spawn().exit_on_failure();

    rec.set_time_sequence("step", 0);
    rec.log("door", rerun::Status().with_status("open"));

    rec.set_time_sequence("step", 1);
    rec.log("door", rerun::Status().with_status("closed"));

    rec.set_time_sequence("step", 2);
    rec.log("door", rerun::Status().with_status("open"));
}

⚠ This type is unstable and may change significantly in a way that the data won't be backwards compatible.

Member Function Documentation

with_many_status()

Status rerun::archetypes::Status::with_many_status ( const Collection< rerun::components::Text > &  _status ) &&

inline

This method makes it possible to pack multiple status in a single component batch.

This only makes sense when used in conjunction with columns. with_status should be used when logging a single row's worth of data.

columns() [1/2]

Collection< ComponentColumn > rerun::archetypes::Status::columns

(

const Collection< uint32_t > &

lengths_

)

Partitions the component data into multiple sub-batches.

Specifically, this transforms the existing ComponentBatch data into ComponentColumns instead, via ComponentBatch::partitioned.

This makes it possible to use RecordingStream::send_columns to send columnar data directly into Rerun.

The specified lengths must sum to the total length of the component batch.

columns() [2/2]

Collection< ComponentColumn > rerun::archetypes::Status::columns

(

)

Partitions the component data into unit-length sub-batches.

This is semantically similar to calling columns with std::vector<uint32_t>(n, 1), where n is automatically guessed.

Member Data Documentation

Descriptor_status

constexpr auto rerun::archetypes::Status::Descriptor_status

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Status:status", Loggable<rerun::components::Text>::ComponentType
        )

ComponentDescriptor for the status field.

---

The documentation for this struct was generated from the following file:

• rerun/archetypes/status.hpp
