rerun::archetypes::Mesh3D Struct Reference

Archetype: A 3D triangle mesh as specified by its per-mesh and per-vertex properties. More...

#include <rerun/archetypes/mesh3d.hpp>

Public Member Functions
	Mesh3D (Mesh3D &&other)=default
	Mesh3D (const Mesh3D &other)=default
Mesh3D &	operator= (const Mesh3D &other)=default
Mesh3D &	operator= (Mesh3D &&other)=default
	Mesh3D (Collection< rerun::components::Position3D > _vertex_positions)
Mesh3D	with_vertex_positions (const Collection< rerun::components::Position3D > &_vertex_positions) &&
	The positions of each vertex.
Mesh3D	with_triangle_indices (const Collection< rerun::components::TriangleIndices > &_triangle_indices) &&
	Optional indices for the triangles that make up the mesh.
Mesh3D	with_vertex_normals (const Collection< rerun::components::Vector3D > &_vertex_normals) &&
	An optional normal for each vertex.
Mesh3D	with_vertex_colors (const Collection< rerun::components::Color > &_vertex_colors) &&
	An optional color for each vertex.
Mesh3D	with_vertex_texcoords (const Collection< rerun::components::Texcoord2D > &_vertex_texcoords) &&
	An optional uv texture coordinate for each vertex.
Mesh3D	with_albedo_factor (const rerun::components::AlbedoFactor &_albedo_factor) &&
	A color multiplier applied to the whole mesh.
Mesh3D	with_many_albedo_factor (const Collection< rerun::components::AlbedoFactor > &_albedo_factor) &&
	This method makes it possible to pack multiple albedo_factor in a single component batch.
Mesh3D	with_face_rendering (const rerun::components::MeshFaceRendering &_face_rendering) &&
	Determines which faces of the mesh are rendered.
Mesh3D	with_many_face_rendering (const Collection< rerun::components::MeshFaceRendering > &_face_rendering) &&
	This method makes it possible to pack multiple face_rendering in a single component batch.
Mesh3D	with_albedo_texture_buffer (const rerun::components::ImageBuffer &_albedo_texture_buffer) &&
	Optional albedo texture.
Mesh3D	with_many_albedo_texture_buffer (const Collection< rerun::components::ImageBuffer > &_albedo_texture_buffer) &&
	This method makes it possible to pack multiple albedo_texture_buffer in a single component batch.
Mesh3D	with_albedo_texture_format (const rerun::components::ImageFormat &_albedo_texture_format) &&
	The format of the albedo_texture_buffer, if any.
Mesh3D	with_many_albedo_texture_format (const Collection< rerun::components::ImageFormat > &_albedo_texture_format) &&
	This method makes it possible to pack multiple albedo_texture_format in a single component batch.
Mesh3D	with_class_ids (const Collection< rerun::components::ClassId > &_class_ids) &&
	Optional class Ids for the vertices.
Collection< ComponentColumn >	columns (const Collection< uint32_t > &lengths_)
	Partitions the component data into multiple sub-batches.
Collection< ComponentColumn >	columns ()
	Partitions the component data into unit-length sub-batches.

Static Public Member Functions
static Mesh3D	update_fields ()
	Update only some specific fields of a Mesh3D.
static Mesh3D	clear_fields ()
	Clear all the fields of a Mesh3D.

Public Attributes
std::optional< ComponentBatch >	vertex_positions
	The positions of each vertex.
std::optional< ComponentBatch >	triangle_indices
	Optional indices for the triangles that make up the mesh.
std::optional< ComponentBatch >	vertex_normals
	An optional normal for each vertex.
std::optional< ComponentBatch >	vertex_colors
	An optional color for each vertex.
std::optional< ComponentBatch >	vertex_texcoords
	An optional uv texture coordinate for each vertex.
std::optional< ComponentBatch >	albedo_factor
	A color multiplier applied to the whole mesh.
std::optional< ComponentBatch >	face_rendering
	Determines which faces of the mesh are rendered.
std::optional< ComponentBatch >	albedo_texture_buffer
	Optional albedo texture.
std::optional< ComponentBatch >	albedo_texture_format
	The format of the albedo_texture_buffer, if any.
std::optional< ComponentBatch >	class_ids
	Optional class Ids for the vertices.

Static Public Attributes
static constexpr const char	ArchetypeName [] = "rerun.archetypes.Mesh3D"
	The name of the archetype as used in ComponentDescriptors.
static constexpr auto	Descriptor_vertex_positions
	ComponentDescriptor for the vertex_positions field.
static constexpr auto	Descriptor_triangle_indices
	ComponentDescriptor for the triangle_indices field.
static constexpr auto	Descriptor_vertex_normals
	ComponentDescriptor for the vertex_normals field.
static constexpr auto	Descriptor_vertex_colors
	ComponentDescriptor for the vertex_colors field.
static constexpr auto	Descriptor_vertex_texcoords
	ComponentDescriptor for the vertex_texcoords field.
static constexpr auto	Descriptor_albedo_factor
	ComponentDescriptor for the albedo_factor field.
static constexpr auto	Descriptor_face_rendering
	ComponentDescriptor for the face_rendering field.
static constexpr auto	Descriptor_albedo_texture_buffer
	ComponentDescriptor for the albedo_texture_buffer field.
static constexpr auto	Descriptor_albedo_texture_format
	ComponentDescriptor for the albedo_texture_format field.
static constexpr auto	Descriptor_class_ids
	ComponentDescriptor for the class_ids field.

Detailed Description

Archetype: A 3D triangle mesh as specified by its per-mesh and per-vertex properties.

See also archetypes::Asset3D.

If there are multiple archetypes::InstancePoses3D instances logged to the same entity as a mesh, an instance of the mesh will be drawn for each transform.

For transparency ordering, as well as back face culling (disabled by default), front faces are assumed to be those with counter clockwise triangle winding order (this is the same as in the GLTF specification).

Examples

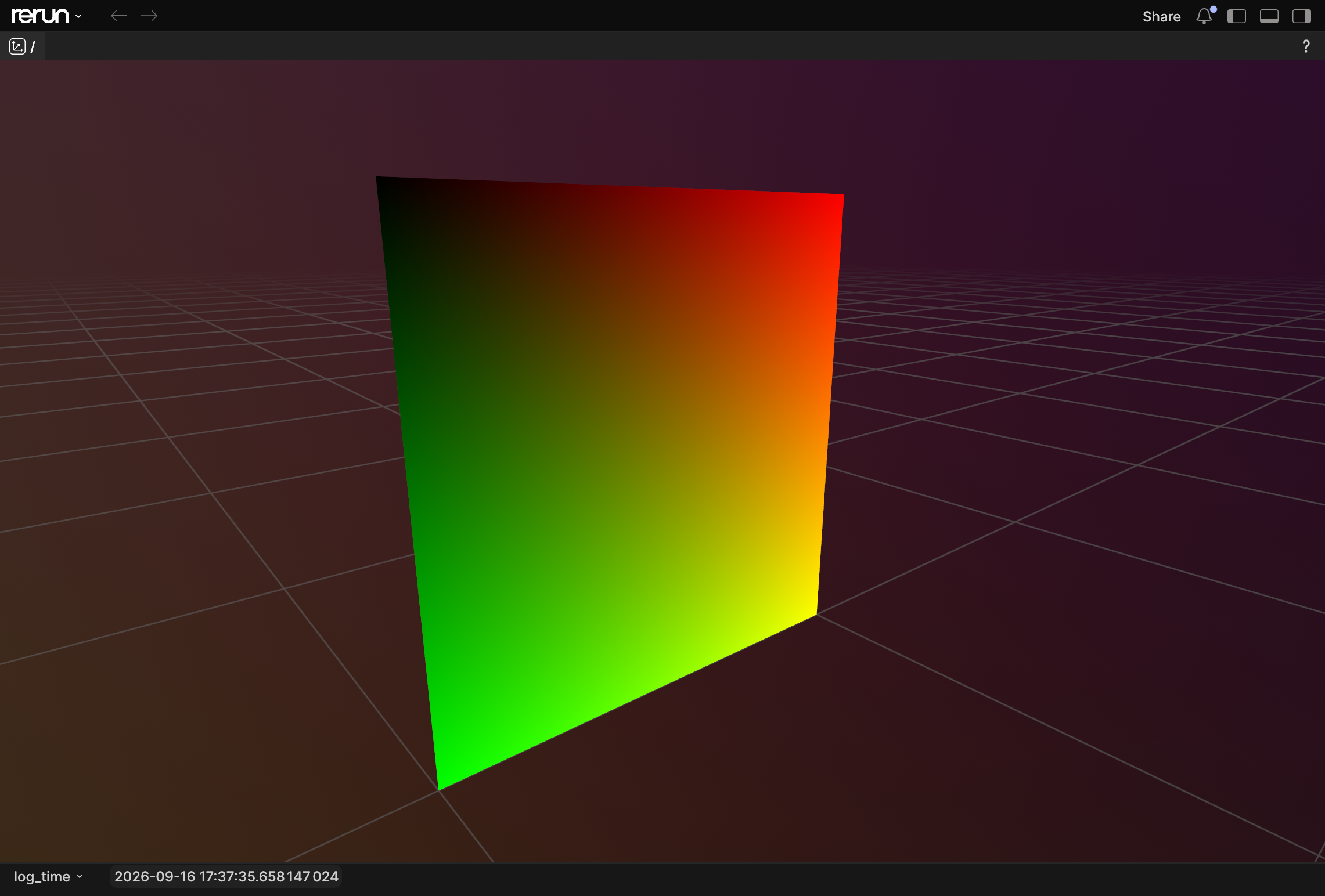

Simple indexed 3D mesh

#include <rerun.hpp>

#include <vector>

int main(int argc, char* argv[]) {
    const auto rec = rerun::RecordingStream("rerun_example_mesh3d_indexed");
    rec.spawn().exit_on_failure();

    const rerun::Position3D vertex_positions[3] = {
        {0.0f, 1.0f, 0.0f},
        {1.0f, 0.0f, 0.0f},
        {0.0f, 0.0f, 0.0f},
    };
    const rerun::Color vertex_colors[3] = {
        {0, 0, 255},
        {0, 255, 0},
        {255, 0, 0},
    };

    rec.log(
        "triangle",
        rerun::Mesh3D(vertex_positions)
            .with_vertex_normals({{0.0, 0.0, 1.0}})
            .with_vertex_colors(vertex_colors)
            .with_triangle_indices({{2, 1, 0}})
    );
}

3D mesh with instancing

#include <rerun.hpp>

int main(int argc, char* argv[]) {
    const auto rec = rerun::RecordingStream("rerun_example_mesh3d_instancing");
    rec.spawn().exit_on_failure();

    rec.set_time_sequence("frame", 0);
    rec.log(
        "shape",
        rerun::Mesh3D(
            {{1.0f, 1.0f, 1.0f}, {-1.0f, -1.0f, 1.0f}, {-1.0f, 1.0f, -1.0f}, {1.0f, -1.0f, -1.0f}}
        )
            .with_triangle_indices({{0, 2, 1}, {0, 3, 1}, {0, 3, 2}, {1, 3, 2}})
            .with_vertex_colors({0xFF0000FF, 0x00FF00FF, 0x00000FFFF, 0xFFFF00FF})
    );
    // This box will not be affected by its parent's instance poses!
    rec.log("shape/box", rerun::Boxes3D::from_half_sizes({{5.0f, 5.0f, 5.0f}}));

    for (int i = 0; i <100; ++i) {
        rec.set_time_sequence("frame", i);
        rec.log(
            "shape",
            rerun::InstancePoses3D()
                .with_translations(
                    {{2.0f, 0.0f, 0.0f},
                     {0.0f, 2.0f, 0.0f},
                     {0.0f, -2.0f, 0.0f},
                     {-2.0f, 0.0f, 0.0f}}
                )
                .with_rotation_axis_angles({rerun::RotationAxisAngle(
                    {0.0f, 0.0f, 1.0f},
                    rerun::Angle::degrees(static_cast<float>(i) * 2.0f)
                )})
        );
    }
}

Member Function Documentation

with_vertex_positions()

Mesh3D rerun::archetypes::Mesh3D::with_vertex_positions ( const Collection< rerun::components::Position3D > &  _vertex_positions ) &&

inline

The positions of each vertex.

If no triangle_indices are specified, then each triplet of positions is interpreted as a triangle.

with_vertex_colors()

Mesh3D rerun::archetypes::Mesh3D::with_vertex_colors ( const Collection< rerun::components::Color > &  _vertex_colors ) &&

inline

An optional color for each vertex.

The alpha channel is ignored.

with_albedo_factor()

Mesh3D rerun::archetypes::Mesh3D::with_albedo_factor ( const rerun::components::AlbedoFactor &  _albedo_factor ) &&

inline

A color multiplier applied to the whole mesh.

Alpha channel governs the overall mesh transparency.

with_many_albedo_factor()

Mesh3D rerun::archetypes::Mesh3D::with_many_albedo_factor ( const Collection< rerun::components::AlbedoFactor > &  _albedo_factor ) &&

inline

This method makes it possible to pack multiple albedo_factor in a single component batch.

This only makes sense when used in conjunction with columns. with_albedo_factor should be used when logging a single row's worth of data.

with_face_rendering()

Mesh3D rerun::archetypes::Mesh3D::with_face_rendering ( const rerun::components::MeshFaceRendering &  _face_rendering ) &&

inline

Determines which faces of the mesh are rendered.

The default is components::MeshFaceRendering::DoubleSided, meaning both front and back faces are shown.

with_many_face_rendering()

Mesh3D rerun::archetypes::Mesh3D::with_many_face_rendering ( const Collection< rerun::components::MeshFaceRendering > &  _face_rendering ) &&

inline

This method makes it possible to pack multiple face_rendering in a single component batch.

This only makes sense when used in conjunction with columns. with_face_rendering should be used when logging a single row's worth of data.

with_albedo_texture_buffer()

Mesh3D rerun::archetypes::Mesh3D::with_albedo_texture_buffer ( const rerun::components::ImageBuffer &  _albedo_texture_buffer ) &&

inline

Optional albedo texture.

Used with the components::Texcoord2D of the mesh.

Currently supports only sRGB(A) textures, ignoring alpha. (meaning that the tensor must have 3 or 4 channels and use the u8 format)

The alpha channel is ignored.

with_many_albedo_texture_buffer()

Mesh3D rerun::archetypes::Mesh3D::with_many_albedo_texture_buffer ( const Collection< rerun::components::ImageBuffer > &  _albedo_texture_buffer ) &&

inline

This method makes it possible to pack multiple albedo_texture_buffer in a single component batch.

This only makes sense when used in conjunction with columns. with_albedo_texture_buffer should be used when logging a single row's worth of data.

with_many_albedo_texture_format()

Mesh3D rerun::archetypes::Mesh3D::with_many_albedo_texture_format ( const Collection< rerun::components::ImageFormat > &  _albedo_texture_format ) &&

inline

This method makes it possible to pack multiple albedo_texture_format in a single component batch.

This only makes sense when used in conjunction with columns. with_albedo_texture_format should be used when logging a single row's worth of data.

with_class_ids()

Mesh3D rerun::archetypes::Mesh3D::with_class_ids ( const Collection< rerun::components::ClassId > &  _class_ids ) &&

inline

Optional class Ids for the vertices.

The components::ClassId provides colors and labels if not specified explicitly.

columns() [1/2]

Collection< ComponentColumn > rerun::archetypes::Mesh3D::columns

(

const Collection< uint32_t > &

lengths_

)

Partitions the component data into multiple sub-batches.

Specifically, this transforms the existing ComponentBatch data into ComponentColumns instead, via ComponentBatch::partitioned.

This makes it possible to use RecordingStream::send_columns to send columnar data directly into Rerun.

The specified lengths must sum to the total length of the component batch.

columns() [2/2]

Collection< ComponentColumn > rerun::archetypes::Mesh3D::columns

(

)

Partitions the component data into unit-length sub-batches.

This is semantically similar to calling columns with std::vector<uint32_t>(n, 1), where n is automatically guessed.

Member Data Documentation

vertex_positions

std::optional<ComponentBatch> rerun::archetypes::Mesh3D::vertex_positions

The positions of each vertex.

If no triangle_indices are specified, then each triplet of positions is interpreted as a triangle.

vertex_colors

std::optional<ComponentBatch> rerun::archetypes::Mesh3D::vertex_colors

An optional color for each vertex.

The alpha channel is ignored.

albedo_factor

std::optional<ComponentBatch> rerun::archetypes::Mesh3D::albedo_factor

A color multiplier applied to the whole mesh.

Alpha channel governs the overall mesh transparency.

face_rendering

std::optional<ComponentBatch> rerun::archetypes::Mesh3D::face_rendering

Determines which faces of the mesh are rendered.

The default is components::MeshFaceRendering::DoubleSided, meaning both front and back faces are shown.

albedo_texture_buffer

std::optional<ComponentBatch> rerun::archetypes::Mesh3D::albedo_texture_buffer

Optional albedo texture.

Used with the components::Texcoord2D of the mesh.

Currently supports only sRGB(A) textures, ignoring alpha. (meaning that the tensor must have 3 or 4 channels and use the u8 format)

The alpha channel is ignored.

class_ids

std::optional<ComponentBatch> rerun::archetypes::Mesh3D::class_ids

Optional class Ids for the vertices.

The components::ClassId provides colors and labels if not specified explicitly.

Descriptor_vertex_positions

constexpr auto rerun::archetypes::Mesh3D::Descriptor_vertex_positions

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:vertex_positions",
            Loggable<rerun::components::Position3D>::ComponentType
        )

ComponentDescriptor for the vertex_positions field.

Descriptor_triangle_indices

constexpr auto rerun::archetypes::Mesh3D::Descriptor_triangle_indices

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:triangle_indices",
            Loggable<rerun::components::TriangleIndices>::ComponentType
        )

ComponentDescriptor for the triangle_indices field.

Descriptor_vertex_normals

constexpr auto rerun::archetypes::Mesh3D::Descriptor_vertex_normals

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:vertex_normals",
            Loggable<rerun::components::Vector3D>::ComponentType
        )

ComponentDescriptor for the vertex_normals field.

Descriptor_vertex_colors

constexpr auto rerun::archetypes::Mesh3D::Descriptor_vertex_colors

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:vertex_colors", Loggable<rerun::components::Color>::ComponentType
        )

ComponentDescriptor for the vertex_colors field.

Descriptor_vertex_texcoords

constexpr auto rerun::archetypes::Mesh3D::Descriptor_vertex_texcoords

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:vertex_texcoords",
            Loggable<rerun::components::Texcoord2D>::ComponentType
        )

ComponentDescriptor for the vertex_texcoords field.

Descriptor_albedo_factor

constexpr auto rerun::archetypes::Mesh3D::Descriptor_albedo_factor

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:albedo_factor",
            Loggable<rerun::components::AlbedoFactor>::ComponentType
        )

ComponentDescriptor for the albedo_factor field.

Descriptor_face_rendering

constexpr auto rerun::archetypes::Mesh3D::Descriptor_face_rendering

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:face_rendering",
            Loggable<rerun::components::MeshFaceRendering>::ComponentType
        )

ComponentDescriptor for the face_rendering field.

Descriptor_albedo_texture_buffer

constexpr auto rerun::archetypes::Mesh3D::Descriptor_albedo_texture_buffer

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:albedo_texture_buffer",
            Loggable<rerun::components::ImageBuffer>::ComponentType
        )

ComponentDescriptor for the albedo_texture_buffer field.

Descriptor_albedo_texture_format

constexpr auto rerun::archetypes::Mesh3D::Descriptor_albedo_texture_format

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:albedo_texture_format",
            Loggable<rerun::components::ImageFormat>::ComponentType
        )

ComponentDescriptor for the albedo_texture_format field.

Descriptor_class_ids

constexpr auto rerun::archetypes::Mesh3D::Descriptor_class_ids

staticconstexpr

Initial value:

= ComponentDescriptor(
            ArchetypeName, "Mesh3D:class_ids", Loggable<rerun::components::ClassId>::ComponentType
        )

ComponentDescriptor for the class_ids field.

---

The documentation for this struct was generated from the following file:

• rerun/archetypes/mesh3d.hpp
